Aluminum Cast Heaters
Deep Heaters is a trusted aluminum cast heater manufacturer in India, delivering durable and energy-efficient heating solutions for demanding industrial applications.
Aluminum Cast Heater for Industrial Heating Applications
Deep Heaters is the manufacturer of high-performance aluminum cast heaters that are used in order to offer consistent and controlled heating to industrial equipment. A cast aluminum heater is commonly utilized in cases where the exact distribution of temperature and maximum transfer of heat is necessary to ensure stable production processes.
The heaters are typically applied in plastic processing equipment, packaging systems, food processing equipment and industrial molds. Deep Heaters being a trusted supplier of aluminum cast heaters assists the industry which as an industry relies on effective heating systems in ensuring proper quality of the product and stability of the process as well as the performance of the machine.
What Is an Aluminum Cast Heater?
An aluminum cast heater is a kind of industrial electric heater in which heating elements are placed in a cast aluminum enclosure. Electric aluminum cast heater It is made by putting resistance heating elements in a mold and encasing the element with molten aluminum during the casting.
When the aluminum solidifies it creates a robust and a thermally conductive network that effectively disperses heat over the heating surface.
The cast aluminum construction is very durable, resistant to corrosion, and has great mechanical strength and because of these properties, they make the cast aluminum construction very useful in industrial settings where stable heating and long life are of great importance.
Applications / Features of Aluminum Cast Heater
Aluminum Cast Heaters from Deep Heaters are commonly used in:
- Injection Molding Machines
- Extrusion Machinery
- Hot Runner Systems
- Packaging Equipment
- Polymer & Rubber Processing
- Laboratory Heating Blocks
- Rapid Heat-Up
- Uniform Temperature
- Durable Construction
- High Temperature Capability: 350°C – 450°C
- Customizable Options
Technical Specifications
|
Parameter
|
Details
|
|---|---|
|
Voltage
|
230V, 240V, 415V
|
|
Watt Density
|
10 – 35 W/in² (depends on sheath material & airflow conditions)
|
|
Maximum Operating Temperature
|
Up to ~ 350 °C – 450 °C (depending on casting alloy & insulation)
|
|
Diameter Range
|
Heater is cast around the body size based on application
|
|
Width
|
Custom per application
|
|
Outer Sheath
|
Aluminum casting
|
|
Termination Type
|
Junction box with screw terminals / waterproof connectors / insulated leads
|
Types of Aluminum Cast Heaters
Types of Aluminum Cast Heaters
Cast Aluminum Band Heater
Cast Aluminum Plate Heater
Cast Aluminum Barrel Heater
Cast Aluminum Finned Heater
Benefits of Using Aluminum Cast Heaters
An industrial grade cast aluminum heater offers several advantages for industrial heating systems where durability, uniform heat distribution, and efficiency are important.
Uniform heat distribution across the heating surface
High mechanical strength and durability
Excellent thermal conductivity
Energy-efficient heating performance
Long service life in demanding environments
Resistance to corrosion and mechanical stress
How Does an Aluminum Cast Heater Work?
Aluminum cast heaters make use of the electrical resistance heating technology wherein electrical power is transformed into thermal power and passed on to the working surface of the equipment through the cast aluminum body.
1
Electric Current Flow
When power is supplied, electric current flows through the internal nickel-chromium resistance wire embedded inside the heater.
2
Heat Generation
As the electrical current passes through the resistance element, heat is generated due to electrical resistance.
3
Heat Transfer Through Cast Aluminum
The aluminum body surrounding the heating element acts as a highly conductive medium that distributes heat evenly throughout the heater structure.
4
Direct Equipment Heating
The heat generated in the aluminum body is transferred directly to the equipment surface such as barrels, molds, or plates, maintaining the required operating temperature in industrial systems.
Installation and Maintenance Guidelines
Installation and regular maintenance are useful in improving the heating efficiency and the life of aluminum cast heaters employed in industrial equipment.
- Clean mounting surface before heater installation
- Ensure proper alignment during installation
- Secure mounting bolts evenly for uniform contact
- Confirm correct voltage and electrical connection
- Inspect terminals and wiring periodically
- Monitor operating temperature during production cycles

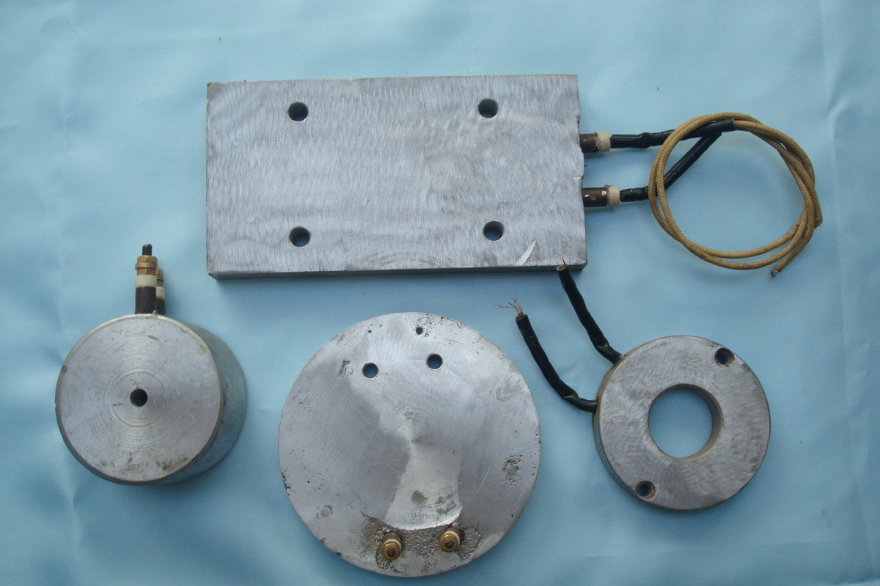

Custom Aluminum Cast Heater Manufacturing
Each industrial aluminum cast heater is produced with precise specifications to ensure seamless integration with equipment.
- Custom dimensions and heating surface design
- Application-specific wattage and voltage configuration
- Integrated thermocouple or sensor options
- Mounting holes and fastening options
- Flexible production capacity for OEM and industrial requirements
Quality Standards and Testing
Every aluminum cast heater produced by Deep Heaters undergoes a structured inspection process to ensure dependable performance, electrical safety, and structural reliability in industrial environments.
Electrical insulation resistance testing
Continuity and wiring safety inspection
Dimensional accuracy verification
Operational heat distribution testing
Aluminum Cast Heaters FAQs
What industries commonly use aluminum cast heaters?
What temperature range can aluminum cast heaters operate in?
Are aluminum cast heaters suitable for continuous industrial operation?
Can aluminum cast heaters be customized for specific machinery?
Yes, aluminum cast heaters are capable of production with custom sizes, wattage, mounting units and built-in sensors that are tailored to particular industry equipment needs.
