Ceramic Band Heater
Deep Heaters is a trusted ceramic band heater manufacturer in India, delivering high-performance heating solutions for demanding industrial applications.
Ceramic Band Heater for Industrial Heating Applications
Deep Heaters manufactured High-performance Ceramic Band Heaters that are designed to work in harsh industrial applications where frequent and high-temperature heat is imperative. Ceramic Band Heater is used where the consistent high temperature heating, energy saving, and durable operation are essential.
As a reliable ceramic band heater supplier, Deep Heaters serves plastic processing, extrusion, and molding industries where precise barrel heating directly impacts production quality and efficiency.
What Is a Ceramic Band Heater?
A ceramic band heater is an industrial resistance heating heating system which is meant to provide high temperatures with little heat loss by the use of ceramic insulation blocks. The heating coil is thus installed in between ceramic tiles and housed in a strong stainless steel casing thus enabling the heater to work effectively even in the hot and heavy industrial conditions.
Ceramic band heaters are also superior to mica band heaters in terms of thermal insulation, higher operating temperature, better life span, and increased energy efficiency. Due to these benefits, they are popularly applied in the industrial ceramic band heater system in use in many sectors of manufacturing.
Applications / Features of Ceramic Band Heaters
Ceramic band heaters from Deep Heaters are commonly used in:
- Plastic injection molding machines
- Plastic extrusion machines
- Blow molding equipment
- Packaging machinery
- Die and barrel heating systems
- Rubber and polymer processing machines
- Capable of operating at high temperatures
- Ceramic insulation for reduced heat loss
- Uniform and consistent heat distribution
- Robust stainless steel outer casing
- High energy efficiency compared to mica heaters
- Long service life in continuous operations
- Available in standard and custom sizes
Technical Specifications
|
Parameter
|
Details
|
|---|---|
|
Voltage
|
110V, 230V, 380V or as specified
|
|
Watt Density
|
As per application requirement
|
|
Maximum Operating Temperature
|
Up to 450°C
|
|
Inner Diameter Range
|
Customizable
|
|
Width Options
|
Customizable
|
|
Insulation Material
|
High-grade ceramic blocks
|
|
Outer Sheath
|
Stainless steel
|
|
Termination Type
|
Leads, studs, terminal box
|
|
Manufacturing Tolerance
|
Industrial standard
|
Types of Ceramic Band Heaters
Deep Heaters manufactures different types of ceramic band heaters to suit specific industrial heating requirements. Each type is designed based on the application’s heating load, available space, and operating temperature conditions to ensure efficient and reliable performance.

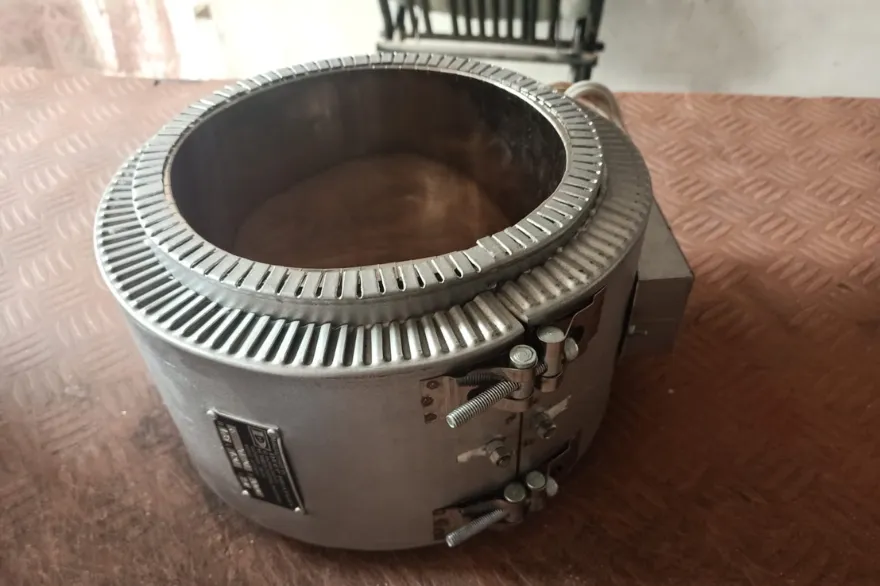

Ceramic Band Heater

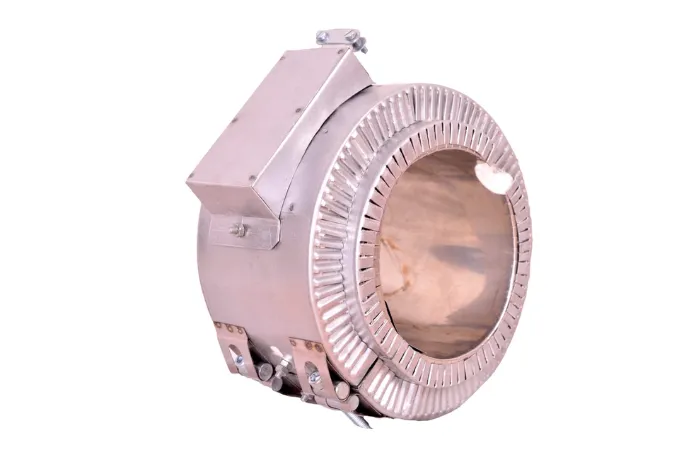

High-Temperature Ceramic Band Heater

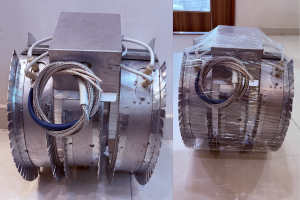

Custom-Designed Ceramic Band Heater

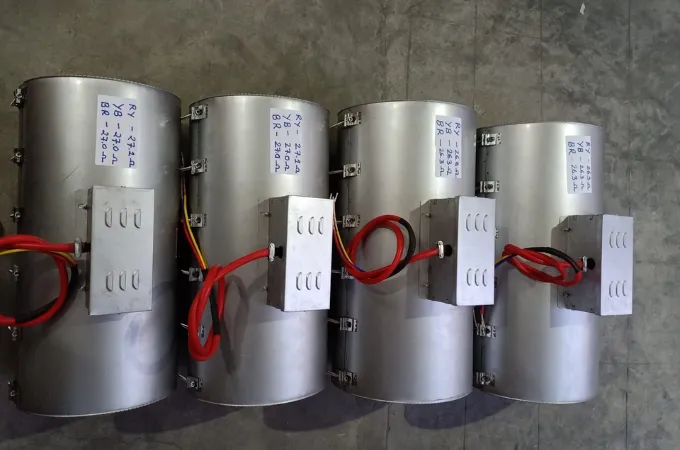

Ceramic Jacket Type Heater
Benefits of Using Ceramic Band Heaters
Ceramic band heaters offer several operational advantages for industrial users, especially in high-temperature and continuous production environments. Our electrical ceramic heaters are built to perform reliably under continuous industrial conditions.
Improved energy efficiency due to superior insulation
Faster heating and better temperature control
Reduced heat loss to surrounding areas
Lower maintenance and replacement frequency
Reliable performance under continuous operation
High-temperature capability for demanding applications
How Does a Ceramic Band Heater Work?
A ceramic band heater works on the principle of electrical resistance heating. It converts electrical energy into thermal energy and efficiently transfers that heat to the surface or barrel requiring controlled temperature. The ceramic insulation helps retain and direct the heat inward, ensuring minimal energy loss and uniform heating performance.
1
Electric Current Flow
The process begins when electrical current passes through the internal resistance heating coil of the ceramic band heater.
2
Heat Generation
Due to electrical resistance within the coil, thermal energy is produced. The coil heats up rapidly as current flows through it.
3
Even Heat Distribution
These blocks evenly distribute and direct the heat toward the machine barrel or surface, ensuring uniform temperature.
4
Safe and Efficient Operation
The outer casing is made of stainless steel thus encasing the heater and securing interior components as well as safe operation in the tough industrial settings.
Installation and Maintenance Guidelines
Installation and maintenance also have a great impact on the performance and efficiency of heaters as well as the overall life of the heater. It is important to follow the proper procedures in order to have safe working conditions and the same heating performance.
- Ensure proper surface contact between heater and barrel
- Tighten clamps evenly for uniform heat transfer
- Use appropriate electrical connections as per voltage rating
- Inspect heaters periodically for insulation and terminal condition
- Avoid overheating beyond recommended temperature limits
Custom Ceramic Band Heater Manufacturing
Deep Heaters provides custom designed ceramic band heaters tailored to satisfy a particular industrial heating need. Each heater is being produced based on the use requirements, which guarantee proper fitting, proper operation and durability.
- Custom diameters, widths, and wattage ratings
- Special termination and lead configurations
- Integration with temperature sensors
- OEM and bulk manufacturing support
Quality Standards and Testing
The quality check of each ceramic band heater is tough to meet the performance, efficiency, and safety requirements in industrial settings. Our testing processes will ensure that we have a standard process of manufacturing and also provide reliable heating solutions.
Insulation resistance
testing
High-temperature performance testing
Electrical safety
checks
Dimensional accuracy inspection
Ceramic Band Heater FAQs
What is the maximum operating temperature of a ceramic band heater?
What is the difference between a ceramic band heater and a mica band heater?
Can ceramic band heaters be customized?
Which industries commonly use ceramic band heaters?
