Hot Runner Coil Heaters
Deep Heaters is a trusted hot runner coil heater manufacturer in India, delivering compact, high-efficiency heating solutions for demanding industrial applications.
Hot Runner Coil Heater for Plastic Processing Systems
Deep Heaters produces hot runner heater systems of high quality that are intended to provide precise and consistent heating of nozzles and hot runner assemblies of plastic injection molding machines. These heaters have a wide range of applications and are primarily used when it is important to maintain the melt temperature constant during parts production to achieve consistency and produce as many parts as possible.
Our electric hot runner coil heater systems have been designed with intimate heating, quick response and even heat distribution. They are typically used in hot runners nozzles, manifolds and sprue bushings where there is limited space but temperature accuracy is a requirement.
Deep Heaters, as a trusted supplier of hot runners coil heating, serves industries that require uniform nozzle heating in order to achieve a steady flow of the polymer, minimized wastage of material and enhanced quality of the molded product.
What Is a Hot Runner Coil Heater?
A hot runner coil heater is a small electrical heating coil which was particularly designed to heat hot runner nozzles and associated devices in injection molding machines. It is made out of a resistance heating wire that is embedded into high quality insulation and fitted by a robust metal sheath.
A heating element is usually made of a nickel-chromium resistance wire compacted within magnesium oxide insulation. This design guarantees high thermal conductivity, high electrical insulation and constant high-temperature operation.
An industrial grade hot runner coil heater is created not only to provide consistent heat transfer but also to endure constant utilization in the heat-intensive conditions.
Applications / Features of Hot Runner Coil Heater
Hot Runner Coil Heater from Deep Heaters are commonly used in:
- Plastic Injection Molding
- Hot Runner Manifolds & Nozzles
- Blow Molding Machines
- Multi-Cavity Injection Systems
- Polymer & Rubber Processing
- Rapid Heat-Up
- Precise Temperature Control
- High-Temperature Capability: 400°C – 600°C
- Flexible & Durable Design
Technical Specifications
|
Parameter
|
Details
|
|---|---|
|
Voltage
|
230V, 240V, 415V
|
|
Watt Density
|
3 – 8 W/cm² (depends on coil size & application)
|
|
Maximum Operating Temperature
|
Up to ~450–550 °C (depending on insulation & sheath)
|
|
Diameter Range
|
Coil heaters are typically formed to fit hot runner manifold bores (common ID sizes: Ø6 mm, Ø8 mm, Ø10 mm, Ø12 mm, etc.)
|
|
Width
|
Coil length to suit manifold zone (custom per design)
|
|
Insulation Material
|
High-temperature Ceramic Block and nickel chrome resistance wire
|
|
Outer Sheath
|
Stainless Steel (SS304 / SS316), Incoloy (for higher corrosion resistance)
|
|
Termination Type
|
Lead wires, ceramic terminal block, insulated pins, or junction box
|
Types of Hot Runner Coil Heaters
Each heater is developed based on nozzle design, watt density requirements, and operating conditions to ensure reliable performance and precise temperature control.
Standard Hot Runner Coil Heater
High-Watt Density Coil Heater
Thermocouple Integrated Coil Heater
Square Section Coil Heater

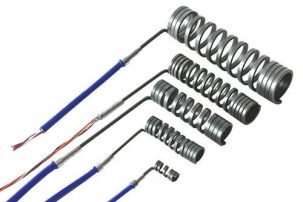

Micro coil hot runner heater
Benefits of Using Hot Runner Coil Heaters
Hot runner coil heaters are widely preferred in precision molding environments due to their compact construction and fast heat response.
Uniform heat distribution across nozzle surfaces
Fast heat-up and improved cycle efficiency
Compact design suitable for tight installation spaces
High-temperature capability
Energy-efficient heating performance
Durable build for continuous industrial usage
How Does a Hot Runner Coil Heater Work?
Hot runner coil heaters work by the principle of heating by the electrical resistance whereby electrical energy is transformed into thermal energy and is directly transferred on the nozzle surface.
1
Electrical Activation
When power is supplied, current flows through the internal resistance wire embedded inside the heater assembly.
2
Heat Generation
The resistance wire generates heat as electricity passes through it. The compact insulation ensures efficient outward heat flow while maintaining electrical isolation.
3
Controlled Heat Transfer
Magnesium oxide insulation conducts the generated heat toward the outer metal sheath while preventing electrical leakage.
4
Direct Nozzle Heating
The stainless steel sheath transfers the heat directly to the hot runner nozzle surface, maintaining stable melt temperature for consistent molding performance.

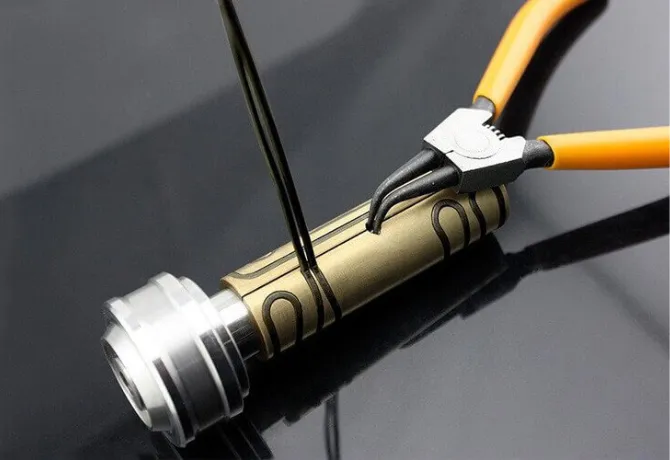

Installation and Maintenance Guidelines
Correct installation and periodic inspection are useful to preserve the efficiency of heating and increase the life cycle of coil heaters.
- Ensure accurate fit around the nozzle
- Avoid excessive tightening during mounting
- Confirm correct voltage and wattage before connection
- Protect lead wires from mechanical stress
- Periodically inspect for signs of overheating or insulation wear

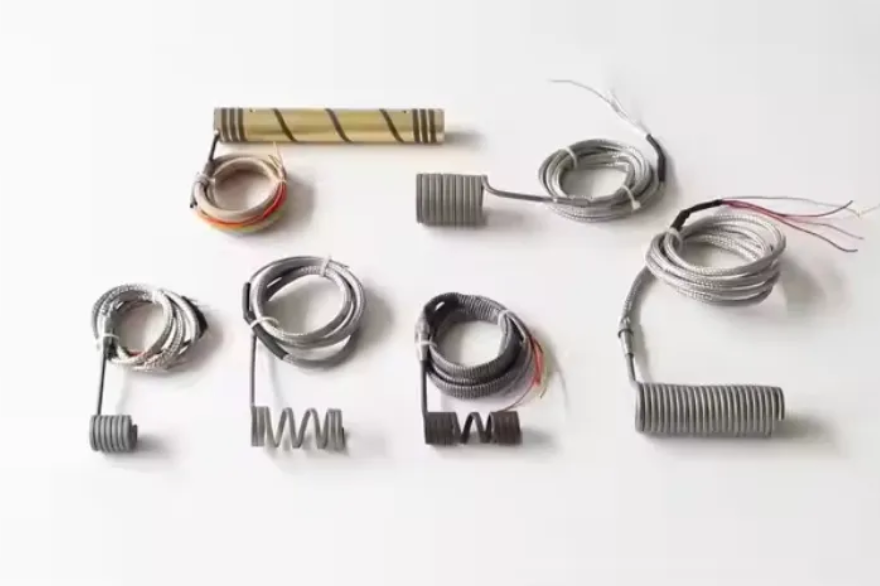

Custom Hot Runner Coil Heater Manufacturing
Deep Heaters develops and produces custom heaters of hot runner feeders according to the mold and nozzle design. The units are constructed with high degree of dimensional accuracy and electrical requirements so that they can be easily integrated into injection molding systems.
- Custom inner diameters and coil lengths
- Application-based voltage and watt density options
- Built-in J-type or K-type thermocouple integration
- Flexible lead exit and termination styles
- Scalable production for OEM requirements
Quality Standards and Testing
Every hot runner coil heater manufactured by Deep Heaters undergoes detailed inspection to ensure dependable performance and electrical safety.
High-voltage insulation resistance testing
Electrical continuity and safety verification
Dimensional accuracy inspection
Controlled operational heat performance testing
Hot Runner Coil FAQs
What is the operating temperature range of a hot runner coil heater?
How do I select the correct watt density?
Can thermocouples be integrated into the heater?
What causes heater failure?
