Oil Circulation Heater
Deep Heaters is a trusted oil circulation heater manufacturer in India, delivering reliable and cost-effective heating solutions for medium to high-temperature industrial applications.
Oil Circulation Heater for Industrial Heating Applications
Deep Heaters manufactures high-quality oil circulation heaters designed for precise and uniform heating in closed-loop thermal fluid systems. Our heaters find extensive application as a type of industrial oil circulation heater and application where a consistent temperature and indirect heating is essential as the process of ensuring production efficiency. They are usually fitted in chemical processing plants, plastic industries, pharmaceutical units, food processing facilities and heavy engineering equipment.
Deep Heaters being an expert oil circulation heater supplier assists industries which depend on controlled, fluid circulation as a means of achieving uniformity in heating, conformity in products and efficient operation of their systems. We offer in our industrial grade oil circulation heater designed in such a way that they are long-lasting, safe, and durable.

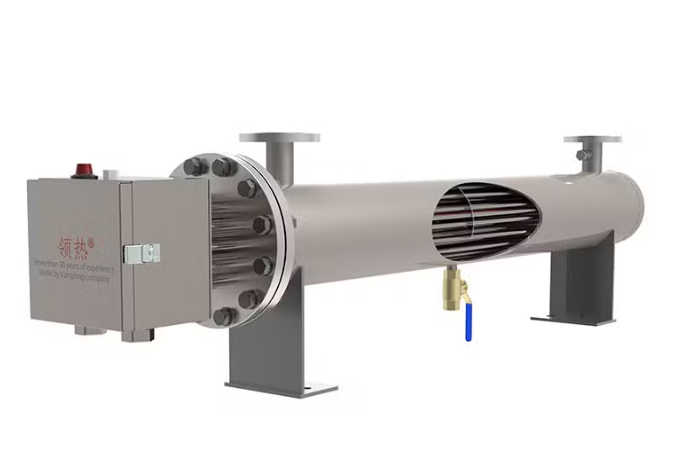

What Is an Oil Circulation Heater?
The oil circulation heater is a type of industrial heating equipment that is used on thermal oil to keep process temperatures even within a closed-loop piping system. It uses heat transfer oil instead of direct heating elements on machinery surfaces.
An electric oil circulation heater is made of electric heating components installed into a pressure vessel, where thermal oil is heated and pumped to the needed equipment using pipelines. This type of thermal oil circulation heater design has made sure safe transfer of heat, control of temperature and reliable operation in medium and high temperatures in industries.
Applications / Features of Hot Runner Coil Heaterr
Hot Runner Coil Heater from Deep Heaters are commonly used in:
- Plastic Injection Molding
- Hot Runner Manifolds & Nozzles
- Blow Molding Machines
- Multi-Cavity Injection Systems
- Multi-Cavity Injection Systems
- Rapid Heat-Up
- Precise Temperature Control
- High-Temperature Capability: 400°C – 600°C
- Flexible & Durable Design
Technical Specifications
|
Parameter
|
Details
|
|---|---|
|
Voltage
|
230V, 240V, 415V
|
|
Watt Density
|
3 – 8 W/cm² (depends on coil size & application)
|
|
Maximum Operating Temperature
|
Up to ~450–550 °C (depending on insulation & sheath)
|
|
Diameter Range
|
Coil heaters are typically formed to fit hot runner manifold bores (common ID sizes: Ø6 mm, Ø8 mm, Ø10 mm, Ø12 mm, etc.)
|
|
Width
|
Coil length to suit manifold zone (custom per design)
|
|
Insulation Material
|
High-temperature Ceramic Block and nickel chrome resistance wire
|
|
Outer Sheath
|
Stainless Steel (SS304 / SS316), Incoloy (for higher corrosion resistance)
|
|
Termination Type
|
Lead wires, ceramic terminal block, insulated pins, or junction box
|
Types of Oil Circulation Heaters
Each industrial grade oil circulation heater is developed based on heating capacity, flow rate requirements, operating temperature, and system design to ensure efficient and consistent heat distribution.

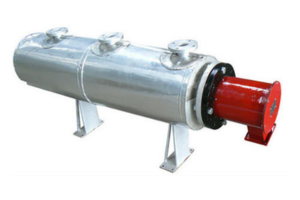

Standard Oil Circulation Heater

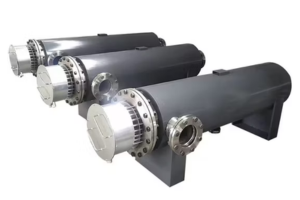

High-Temperature Oil Circulation Heater

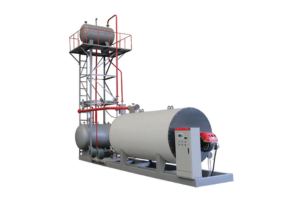

Skid-Mounted Oil Circulation Heater

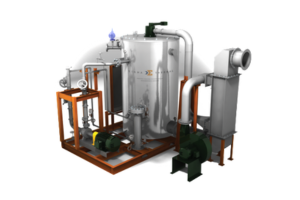

Custom-Built Thermal Oil Heating System
Benefits of Using Oil Circulation Heaters
Oil circulation heaters offer practical and efficient heating solutions for industrial users requiring indirect and uniform heat distribution. Our electric oil heaters are designed for consistent and stable performance.
Uniform heat distribution across equipment
Reduced risk of localized overheating
Energy-efficient closed-loop operation
Suitable for medium to high-temperature applications
Low maintenance requirements
Reliable performance under continuous production conditions
How Does an Oil Circulation Heater Work?
Oil circulation heaters are based on the fact of the indirect heating by the circulation of thermal fluids. The electrical energy is converted into heat energy which is passed to thermal oil and then pumped through the system to ensure that the temperature is strictly controlled in industrial systems.
1
Electric Current Activation
When power is supplied, electrical current flows through the internal heating elements installed inside the heater chamber.
2
Thermal Energy Generation
As current passes through the heating elements, heat is generated and transferred to the surrounding thermal oil inside the vessel.
3
Oil Circulation
A circulation pump moves the heated oil through insulated pipelines toward connected machinery such as reactors, tanks, or molds.
4
Indirect Heat Transfer
The hot oil transfers heat to the equipment surfaces through jackets or coils, and then returns to the heater for reheating, maintaining a continuous temperature cycle.
Installation and Maintenance Guidelines
Correct installation and regular inspection play a critical role in maintaining heating efficiency and extending the operational life of oil circulation heaters. Proper handling ensures stable temperature control and reduces the risk of system failure.
- Install the heater on a stable and level surface
- Ensure proper insulation of connected pipelines
- Maintain recommended thermal oil levels
- Verify correct voltage before power connection
- Regularly inspect pump, valves, and electrical connections

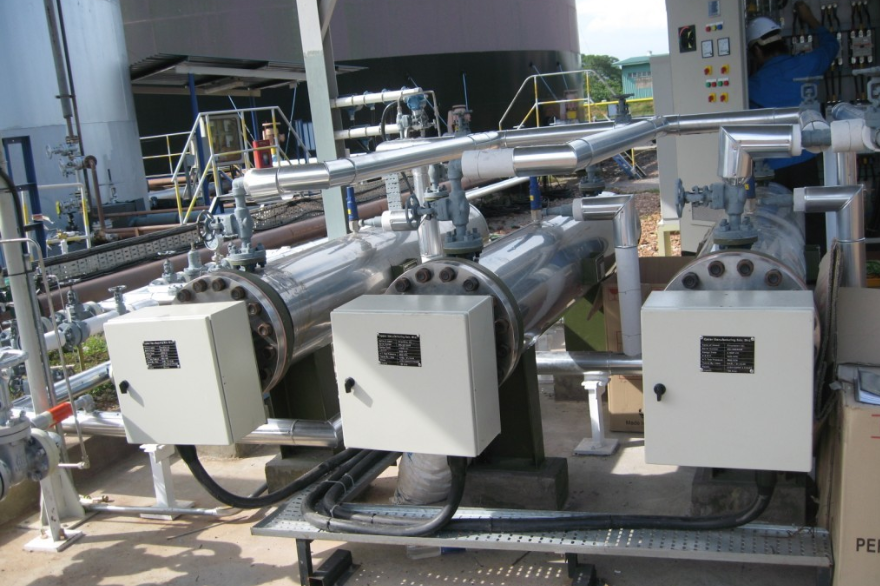

Custom Oil Circulation Heater Manufacturing
Deep Heaters designs and manufactures oil circulation heaters built to match specific process requirements and plant configurations. Each unit is developed with precise capacity planning and electrical specifications to ensure seamless integration into industrial heating systems.
- Custom heating capacities and flow rates
- Application-based voltage and power ratings
- Integrated temperature control panels
- Safety interlocks and over-temperature protection
- Scalable manufacturing for OEM requirements
Quality Standards and Testing
Every oil circulation heater manufactured by Deep Heaters is evaluated through a controlled inspection process to ensure dependable heating performance, electrical safety, and structural reliability in industrial applications.
High-voltage insulation resistance testing
Electrical continuity and safety verification
Pressure and leak testing of circulation system
Controlled operational heat load testing
Oil Circulation Heater FAQs
How do I select the right capacity for an oil circulation heater?
What causes performance issues in oil circulation heaters?
Can oil circulation heaters operate continuously?
How often should thermal oil be inspected or replaced?
