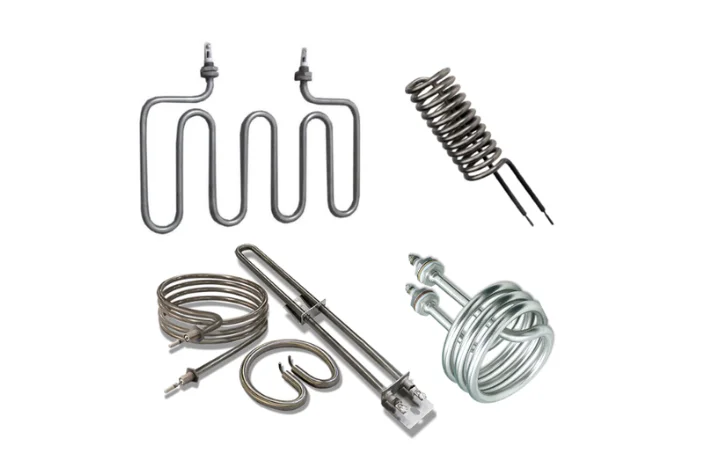

Tubular Heaters
Deep Heaters is a trusted tubular heater manufacturer in India, delivering reliable and energy-efficient heating solutions for diverse industrial applications.
Tubular Heater for Industrial Heating Applications
Deep Heaters manufactures precision-built tubular heaters designed for direct air, liquid, and surface heating in industrial systems. Each industrial tubular heater is developed to handle continuous production conditions while maintaining stable and controlled temperatures.
The heaters are commonly utilized in the ovens, dryers, water heating systems, oil tanks, HVAC devices, packaging machines, food processing facilities, and chemical facilities. They are also versatile in construction to enable them to be shaped into straight or customized shapes to fit machine layouts and machine space demands.
Being a well-established tubular heater supplier, Deep Heaters assists industries where heating performance must be consistent to maintain continuous product flow, product quality, and productivity.
What Is a Tubular Heater?
A tubular heater refers to an electric tubular heater which is developed to change electrical energy into heat and transmit it effectively to air, liquids, or metals.
The inner heating coil is a nickel-chromium resistance wire that is usually placed in the middle of a metallic sheath. Highly compacted magnesium oxide powder is placed between the coil and sheath space to offer good insulation of electricity and good thermal conductivity properties.
This construction provides a safe operation, rapid heat transfer, and mechanical stability in the medium- and high-temperature industrial use.
Applications / Features of Tubular Heater
Tubular Heater from Deep Heaters are commonly used in:
- Water and Oil Heating Tanks
- Plastic Injection Molding Machines
- Food Processing Equipment
- HVAC Systems
- Laboratory Equipment
- Packaging Machines
- Chemical Processing Units
- High thermal efficiency
- Custom shapes and sizes
- Temperature up to 750°C
Technical Specifications
|
Parameter
|
Details
|
|---|---|
|
Voltage
|
230V, 240V, 415V
|
|
Watt Density
|
Up to 40 W/in²
|
|
Maximum Operating Temperature
|
Up to ~650 °C (depends on sheath material & environment)
|
|
Diameter Range
|
6 mm to 25 mm (typical standard sizes)
|
|
Length
|
Length from ~100 mm to 2000 mm (customizable)
|
|
Outer Sheath
|
Stainless Steel (SS304 / SS316), Incoloy
|
|
Termination Type
|
Screw terminals, junction box, threaded studs, lead wires
|
Types of Tubular Heaters
Each industrial grade tubular heater is developed based on application type, heating medium, watt density, and installation configuration to ensure optimal and consistent performance.
Straight Tubular Heater

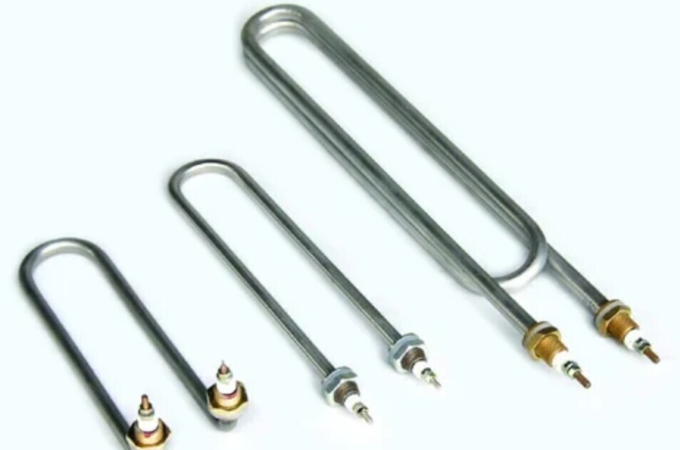

U-Shaped Tubular Heater
Finned Tubular Heater
Immersion Tubular Heater
Custom-Formed Tubular Heater
Benefits of Using Tubular Heaters
Tubular heaters are preferred across industries for their flexibility and dependable heating output.
Uniform and consistent heat distribution
Suitable for air, liquid, and surface heating
Flexible configurations for complex installations
Durable construction for extended service life
Resistant to vibration and mechanical stress
Energy-efficient heating performance
How Does a Tubular Heater Work?
Tubular heaters are based on the theory of electrical resistance heating, in which electrical energy is changed to thermal energy and applied to necessary material.
1
Electrical Current Flow
When power is supplied, current flows through the internal resistance wire positioned at the center of the heater.
2
Heat Generation
The resistance wire generates heat due to electrical resistance, quickly reaching the designed operating temperature.
3
Insulated Heat Transfer
The electrically insulating and highly heat-conductive compacted magnesium oxide powder surrounding the coil conducts the heat to the outer metal sheath.
4
Heat Delivery to Application Surface
The outer sheath conducts the heat generated to air, liquid, or point of contact to maintain constant and controlled temperature performance.
Installation and Maintenance Guidelines
Correct installation and periodic inspection help maintain heating efficiency and extend operational life.
- Select proper watt density for the application
- Ensure adequate immersion level in liquid heating
- Avoid dry operation in immersion systems
- Secure mounting to minimize vibration stress
- Inspect terminals and wiring connections regularly
- Remove scale buildup in water heating applications

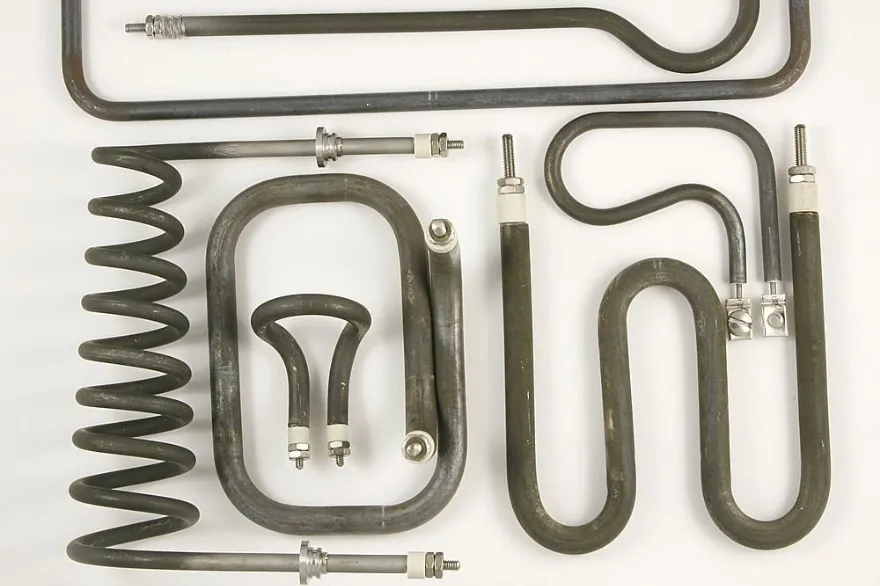

Custom Tubular Heater Manufacturing
Deep Heaters fabricates and produces tubular heaters that are built to fit the layout and process of the specific machinery. All units are designed to fit together with ease in terms of dimensions and electrical characteristics.
- Custom lengths and diameters
- Application-based voltage and watt density ratings
- Stainless steel, Incoloy, or copper sheath options
- Threaded fittings or flange mounting configurations
- Built-in thermocouple integration
- OEM bulk manufacturing capability
Quality Standards and Testing
Every tubular heater undergoes a controlled inspection process to ensure dependable heating performance and operational safety.
High-voltage insulation resistance testing
Electrical continuity and safety verification
Pressure and leak testing of circulation system
Controlled operational heat load testing
Tubular Heater FAQs
What is the maximum operating temperature of a tubular heater?
Can tubular heaters be customized for specific equipment?
What causes premature failure in tubular heaters?
Are tubular heaters suitable for continuous industrial use?
